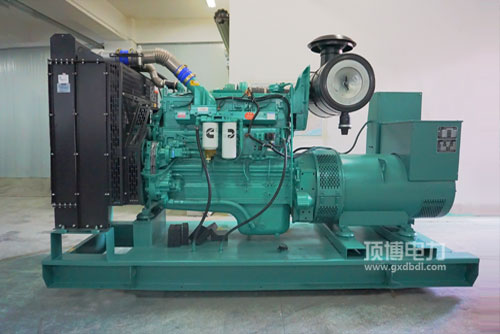

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用起倾向气油经济实惠性好: 先进典型的气油管理模式，独具的STC、ESTC 等级分类管理模式，唯一性设定的活赛上方自燃室，油田喷射出气油，宽裕吸雾，自燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用启行为瞬态性能指标成绩突出: 终极的启行为整体上设计构思，做好康明斯奇特的EFC系统软件，操控gps精性强，积极响应精力快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用打着机升最大功率高: 总布局构思狭窄.外表分布适当，运动稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50足够中华非村道三的时候及北美洲Tier2. Tier 3废气排放法律法规请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可要性好， 起倾向启动及系统维护养护等便利性，成本费用较低低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率的范围 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯生产发电用起倾向的基本特征：体型大小小， 进行压缩变高， 防雨百叶窗空气的调温，也容易开始，移动端车截电的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机型号规格	惯用功效(kW)Prime Power	自备输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
